  No.:

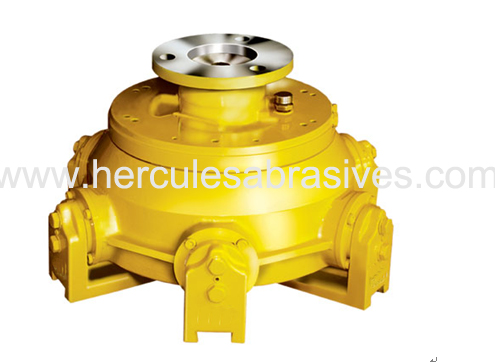

  Item:Polishing head


Product Description:

1.CAM TPYE GRINDING HEAD WITH 6-CLAW


<1>To adopt tridimensional-software to design and verify it.Critical parts are manufactured accurately and are treated by a special process. Product quality can get perfect assurance.

<2> It is with cam type sinusoidal curve of design. Abrasive seat vibrates steadily and reasonably.It is also with high grinding efficiency; running smooth and lower noice.

<3> Bearings of NTN are imported from Japan.To adopt Hybrid-type sealing, which gets simple structure and never leaks oil, also is without wear parts.




2.WORM GEAR AND WORM OF GRINDING HEAD WITH 6-CLAW


This kind of grinding head is the most excellent design in the international market.

It is prominet features as follows:

1.    It is with over-length life and lower failure-rate, moreover,without wear part.

2.    Grinding speed is fast. The grinding speed of abrasive-seat is 3times than other grinding-head in the present market,which will makes slab with higher luminosity.

3.    Execllent oil-sealing.

4.    It is suitable for polishing granite;floor brick;ceramic and microlite.Especially, it is suitable for polishing thin slab. Useful pressure is less than 1, which descends broken -rate for slab and supplies a gap in the domestic market.


3. Model  Active Tangential Grinding Head

High Efficiency:

Active Tangential Grinding Head of structure runs equalization,without pause and accelaration,which can continuously grind surface.

Reliability:

It is without cam; lever and ram,which extends useful life.The intra-flexibility system is with extra-size column of transmission-device.





4.CAM TPYE SMALLER GRINDING HEAD WITH 5-CLAW



It is suitable for single-head machine or multi-head machine.concrete performance is as follows:

<1> The components of quantity from inner grinding head is deplete. Adopt multi-angle of rocker-arm for transmission system ,which may avoid to effect double-direction for rocker-arm of oscillating uniform and uniform backlash. The accuracy of grinding head confirm to cosume consumptive material unifomity.Then may save consumption and get .perfact polishing effect.

<2>. ot is easy to be repaired fast, components of quantity is small,which may save payment for customer;.

<3> The flexibility adn adaptability are srong, which may benifit for uneven cut slab or baked slab (similar wave surface). The grinding head is with srong and effective of calibration and polishing.

<4> The grinding head of price is favourable,all parts are made in our company with higher technology equipment to manufacture.


5.CAM TPYE SMALLER GRINDING HEAD WITH 3-CLAW



It is suitable for single-head machine or multi-head machine.concrete performance is as follows:

<1> The components of quantity from inner grinding head is deplete. Adopt multi-angle of rocker-arm for transmission system ,which may avoid to effect double-direction for rocker-arm of oscillating uniform and uniform backlash. The accuracy of grinding head confirm to cosume consumptive material unifomity.Then may save consumption and get .perfact polishing effect.

<2>. ot is easy to be repaired fast, components of quantity is small,which may save payment for customer;.

<3> The flexibility adn adaptability are srong, which may benifit for uneven cut slab or baked slab (similar wave surface). The grinding head is with srong and effective of calibration and polishing.

<4> The grinding head of price is favourable,all parts are made in our company with higher technology equipment to manufacture.


6.GRINDING-HEAD WITH 4-CLAW IS SPECIAL FOR GRANITE


Advanced grinding-head is with the first-class design. Concrete performance is as follows:

<1> It is with powerful grinding force, cam type sinusoidal curve of vibration to suitable for chip removal and grinding.

<2> The prominent features: It is with long life and lower failure-rate. Although, there is missoperation to make grinding-head to be bumped, it only needs to change several standard parts.which will reduce maintenance cost. Moreover, it is easy to be repaired fast,which may adequately develop your productive force. Normaly,it takes tens of minutes to repair. The spare parts are available and concrete.

<3> Mainly bearings are imported from West-Germany and Japan. Strucutre is science; special features;simple;without wear part.

<4> It is suitable for continuous grinder;double-head grinder;single-head grinder and all kinds of imported grinder.This grinding head may steadily and powfully grind slab,also may fastly glaze slab and reduce abrasive consumption. It is easy to be installed and repaired,which may improve production quality and efficiency.
