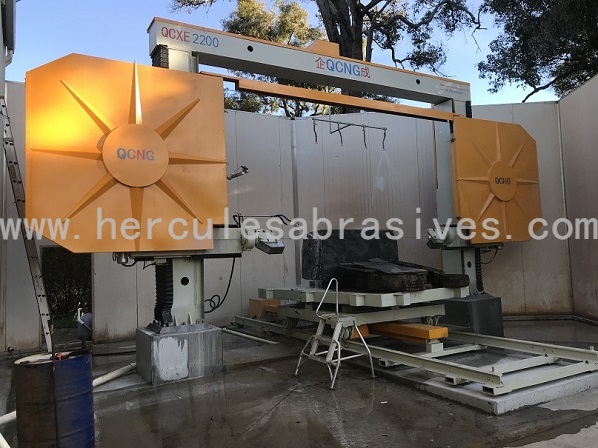

  Item:QCXE-2200 CNC Wire Saw Machine

CNC WIRE SAW MACHINE
Product description
Function:
This machine major in cutting slabs and make profiling on granite and marble. It can cut different sizes of straight slab, arc slab, solid columns and hollow columns and large-scale stone line, letter etc
Technical information
Parameter QCXE-1200 QCXE-1500 QCXE-1800 QCXE-2200
Wire Diameter Dia. 7.3-11.0 mm Dia. 7.3-11.0 mm Dia. 7.3-11.0 mm Dia. 7.3-11.0 mm
Wire Length 12000mm 18100mm 19300 mm 21350 mm
Wire  Speed 28.5m/s 28.5m/s 28.5m/s 28.5m/s
Lifting Travel of Cutter 1300mm 1600 mm 1900 mm 2200 mm
 Maximum Cutting Block Size (Left-Right x Front-Back x Up-Down)  1500x2000x1200mm 3500X2000X1500 mm 3600X2000X1800mm 3600X2000X2100mm
Maximum Cutting Slab Size (Left-Righ x Up-Down) 1500x1200mm 3500x1500mm 3600x1800mm 3600x2100mm
Production Capacity 1-2 m2/h(marble) 1-2 m2/h(marble) 1-2 m2/h(marble) 1-2 m2/h(marble)
0.5-1 m2/h(granite) 0.5-1 m2/h(granite)  0.5-1 m2/h(granite)  0.5-1 m2/h(granite)
Overall Demision 6000x5000x4100mm 8200x5600x3800mm 8800x6800x4800mm  9800x7000x5200mm
Total Weight 5T 7T 10.5T 14T
Total Power 13.38KW 19.38KW 19.38KW 24.03KW
Working Table Rotation No No No 360 Degree
Packaging&Shipping
Packaging: fumigated wood box packing
Shipping:by sea, loaded in a 1*20'GP/1*40'GP/1*40'HQ
Delivery: 4 weeks from order confirmed
Our Services
1. Installation and engineer service available overseas.
2.Keep suppying spare parts

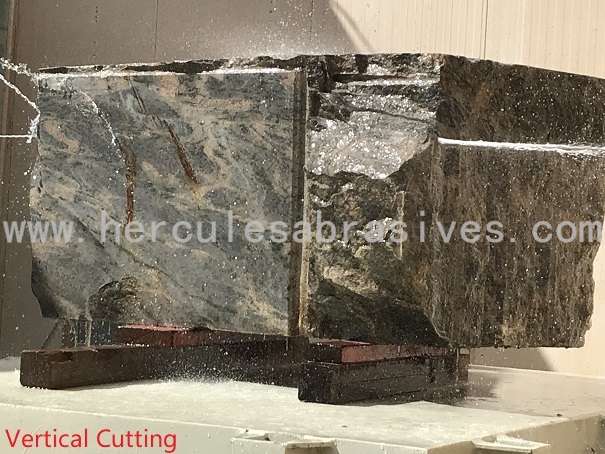

Vertical Cutting

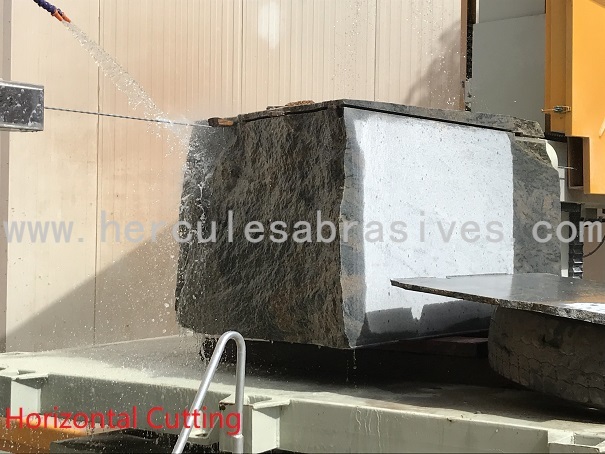

Horizontal Cutting

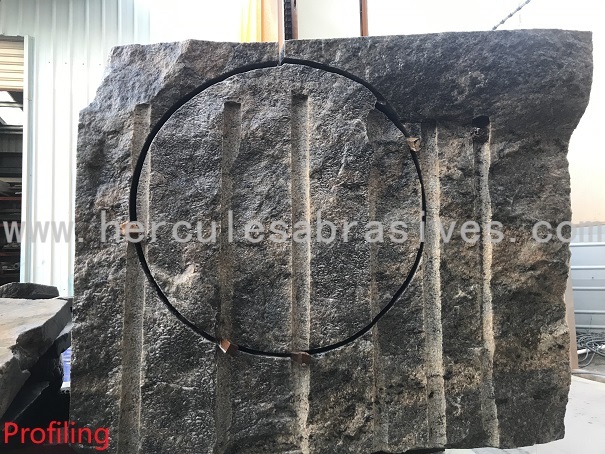

Profiling

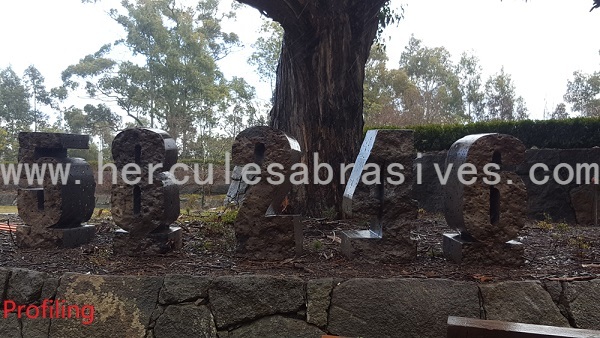

Profiling
