HQC1200 /1400/1600-4D uses PLC system and Human-machine interface, combined with Ultra-high precision rotary encoder to locate, and infrared device, it uses inverter to control left-right feeding, adjust the speed according to the stone material. It uses hydraulic lifting system, and main spare parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high stability, easy-operating to suit specially shaped stone products, tombstone and curb stone.

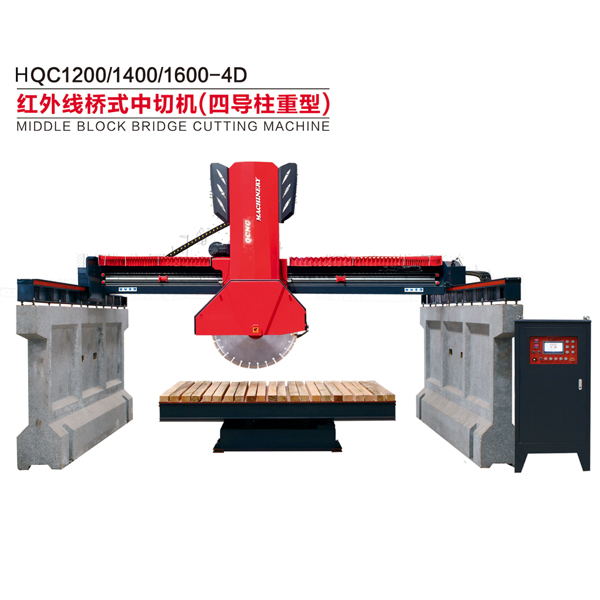

HQC1200 /1400/1600-4D Middle block cutting machine
|
Appellation
|
unit
|
HQC1200 /1400/1600-4D
|
Max.Blade diameter
|
mm
|
F1200/F1400/F1600
|
Max.Lifting stroke
|
mm
|
750
|
Worktable size
|
mm
|
3000*2000
|
Worktable rotation range(optional)
|
degree
|
0-90, 0-360(set up every 45 degree)
|
Water consumption
|
m3/h
|
5
|
Power of main motor
|
kw
|
30/37
|
Total power
|
kw
|
36/43
|
Dimension(LxWxH)
|
mm
|
6200X4800X4200/4400/4600
|
Total weight
|
kg
|
7200/7400/7600
|
|
