  No.:QCSJ-22/37/45/55/75/90
  Item:Quarry Wire Saw Machine

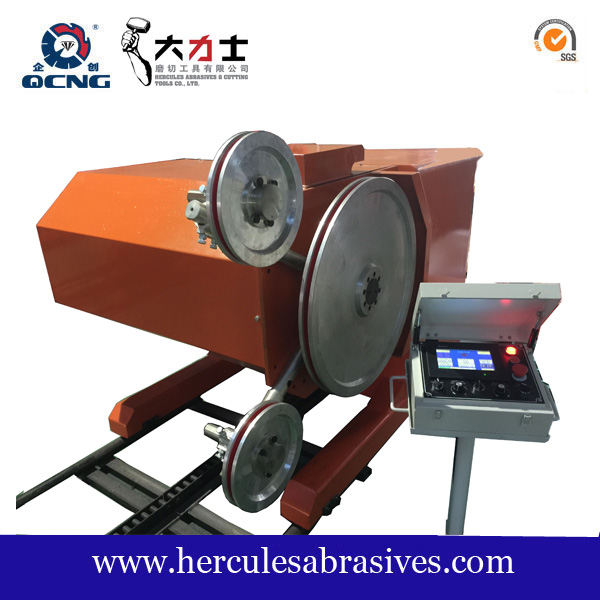

Quarry wire saw machine
Quarry Wire Saw Machine is widely used for quarrying different stones like granite, marble and sandstone
Model QCSJ-22 QCSJ-37 QCSJ-45 QCSJ-55 QCSJ-75 QCSJ-90
System power(KW) 26 41 49 59 79 95
Mainmotor power(KW) 22 37 45 55 75 90
Voltage/Frequency (Adjustable to different country) 380Volt/50Hz 380Volt/50Hz 380Volt/50Hz 380Volt/50Hz 380Volt/50Hz 380Volt/50Hz
Main flywheel diameter(MM) 600 800 800 800 800 800
Wire saw speed(M/S) 0-40 0-40 0-40 0-40 0-40 0-40
Max.wire saw length(M) 20-60 20-80 20-100 20-120 20-150 20-180
Walking motor power(KW) 0.55 0.75 0.75 1.1 1.5 1.5
Lateral moving diatance(MM) 260 350 350 450 500 550
Rotation angle() 360 360 360 360 360 360
Walking speed of machine(M/H) 0-40 0-40 0-40 0-40 0-40 0-40
Rail length(M) 2M x 4 2M x 4 2M x 4 2M x 4 2M x 4 2M x 4
Working condition - 15癈 ~ + 40癈 Humidty<95% - 15癈 ~ + 40癈 Humidty<95% - 15癈 ~ + 40癈 Humidty<95% - 15癈 ~ + 40癈 Humidty<95% - 15癈 ~ + 40癈 Humidty<95% - 15癈 ~ + 40癈 Humidty<95%
Net weight(T) 1.5 2.4 2.6 3.3 3.8 4.0
Dimension:LxWxH(CM) 156x110x126 185x115x130 185x115x130 200x125x135 215x135x136 220x145x138
Packaging&Shipping
Packaging: fumigated wood box packing
Shipping:by sea, loaded in a 1*20'GP
Delivery: 3 weeks from order confirmed
Our Services
1. operation training and engineer service available overseas.
2.Keep suppying spare parts
