  No.:HA1010

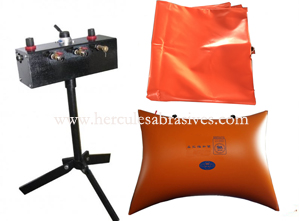

  Item:Hydraulic Air Bag


Description & Specification:

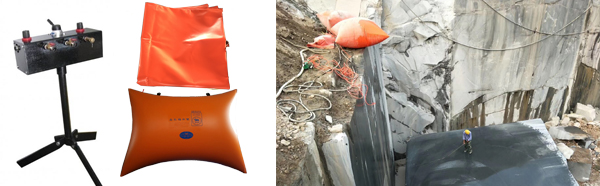

Be used exclusively in placing in the slot cut by diamond wire saw and then pushing down the block. With the forceful thrust,it can repeatedly used.



Model

Specification

Theoretical
pushing capacity

Weight (kg)

HA1010

1.0mx 1.0m

50tons

4.5

HA1015

1.0m x1.5m

75tons

6.8

HA1020

1.0m x2.0m

100tons

9

HA1515

1.5m x1.5m

115tons

10.2

HA2015

2.0m x1.5m

150tons

13.5

HA2020

2.0m x2.0m

200tons

18

HA3030

3.0m x3.0m

450tons

40.5

Control platfrom for
above air bag

air pressue 0-6bar,3 outlet

30
