Product Description
1. Core Drill Bit Segments Application:
Drilling Reinforced concrete, Green Concrete Asphalt, Cinder Bricks etc, such as Road, Wall, Bridge Beam, Tub etc.
2. Core Drill Bit Segments Specifications:
|
Drill Type
|
Diameter x Length (mm)
|
Segment Specification (mm)
|
Segment type
|
|
Reinforced Concrete, Brick, Asphalt
|
26x300
|
24x3.5x10
|
laser welding / silver-brazed
|
|
28x300
|
24x3.5x10
|
|
30x300
|
24x3.5x10
|
|
32x300
|
24x3.5x10
|
|
36x300
|
24x3.5x10
|
|
40x300
|
24x3.5x10
|
|
45x300
|
24x3.5x10
|
|
52x450
|
24x3.5x10
|
62x450
|
24x3.5x10
|
|
72x450
|
24x3.5x10
|
|
76x450
|
24x3.5x10
|
|
82x450
|
24x3.5x10
|
|
87x450
|
24x3.5x10
|
|
92x450
|
24x3.5x10
|
|
102x450
|
24x3.5x10
|
|
107x450
|
24x3.5x10
|
|
112x450
|
24x3.5x10
|
|
117x450
|
24x3.5x10
|
|
122x450
|
24x3.5x10
|
|
127x450
|
24x3.5x10
|
|
132x450
|
24x4.0x10
|
|
142x450
|
24x4.0x10
|
|
152x450
|
24x4.0x10
|
|
162x450
|
24x4.0x10
|
|
172x450
|
24x4.0x10
|
|
182x450
|
24x4.0x10
|
|
187x450
|
24x4.0x10
|
|
200x450
|
24x4.5x10
|
|
225x450
|
24x4.5x10
|
|
250x450
|
24x4.5x10
|
|
300x450
|
24x4.5x10
|
|
350x450
|
24x4.5x10
|
|
400x450
|
24x4.5x10
|
|
450x450
|
24x4.5x10
|
|
Other specification are available upon request.
|

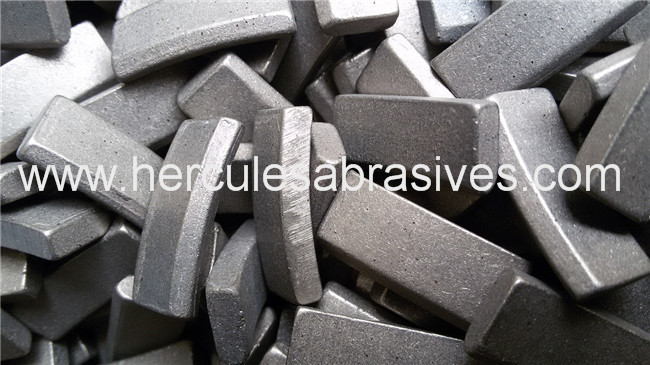

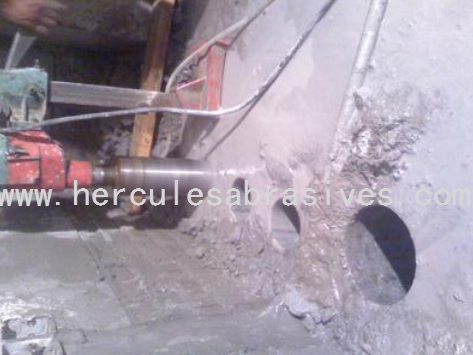

3. More Images of Core Drill Bit Segments:
Packaging & Shipping
Packaging: PVC Shrinking Belt+Standard Carton
Shipment: By Fedex, UPS, TNT, DHL, By Air, or By Sea.
Estimated Time of Delivery: 1- 2 Weeks
Our Service
1. All Concrete Cutting, Drilling and Grinding diamond tools are offered;
2. All Product with top quality and good after sale service;
3. Other specifications are available upon request.
|
