  No.:HAS-GC
  Item:Diamond Segments for Granite Circular Saw Blade


Product Description

1. Characteristics

(1) Diamond segments for granite are mainly used for cutting all kinds of granite blocks.
(2) The blade has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan.
(3) Good cutting result: smooth cutting, flat surface and even size.
(4) Stable cutting, narrow cutting gap, stone waste reduction.
(5) Sandwish and Multi-layers segment model for choosing.
(6) Applicable Machine: Multi-blades granite block cutting machine, single blade granite block cutting machine.

2. Specification

Cutting Type Diameter(mm) Steel core(mm) Segment Dimension(mm) Segment Number
Granite Dia 900 5.0 24x7.0/6.2x15/20 64
Dia 1000 5.0 24x7.0/6.2x15/20 70
Dia 1200 5.5 24x7.4/6.6x15/20 80
Dia 1400 6.0 24x8.0/7.2x15/20 92
Dia 1600 7.2 24x9.2/8.4x15/20 108
Dia 1800 7.5 24x10/9.2x15/20 120
Dia 2000 8.0 24x11/10x15/20 128
Dia 2200 9.0 24x11/10x15/20 132
Dia 2500 9.0 24x12/11x15/20 140
Dia 2700 9.0 24x12/11x15/20 140
Dia 3000 9.3 24x13/12x15/20 160
Dia 3500 9.5 24x13.5/12.5x15/20 180

Remark: Other specifications are available upon request.

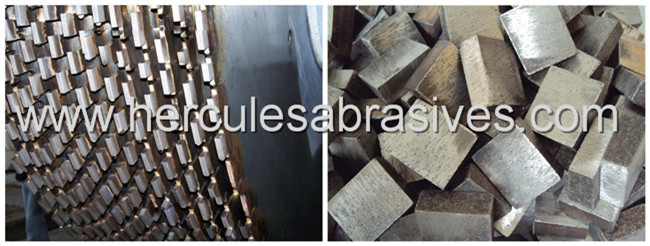

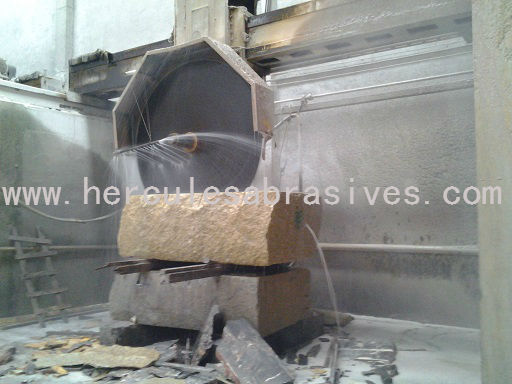

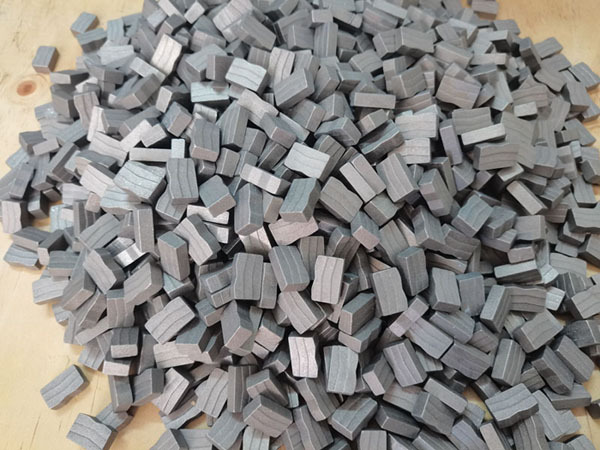

3. More Images of Diamond Segments for Granite Circular Blade:
