1. Wire Application:
-
Cutting various types of marble arc board.
-
For various marble shaping operations.
-
Marble cylinder cutting.
2. Features
-
High efficiency and smooth cutting surface.
-
Less wire breaking off and long cutting life.
3. Wire Specifications:
Item No.
|
Bead Diameter (mm)
|
Bead/meter (pcs/m)
|
Application
|
Coating
|
|
HAW-MP08533
|
Dia8.5
|
33
|
Marble Profiling
|
High strength plastic
|
4. Parameters:
Application
|
Wire Speed(m/s)
|
Cutting Speed( m2 /h)
|
Life( m2 /m)
|
soft marble
|
30-35
|
3-6
|
35-40
|
Medium hard marble
|
25-28
|
2-4
|
25-35
|
Hard marble
|
23-25
|
1-2
|
15-25
|
5. Bead Specification:
Bead Diameter (mm)
|
Working Layer Length (mm)
|
Bead Type
|
Dia8.5
|
L6.0
|
Sintered
|
Dia8.5
|
L6.0
|
Electroplated
|

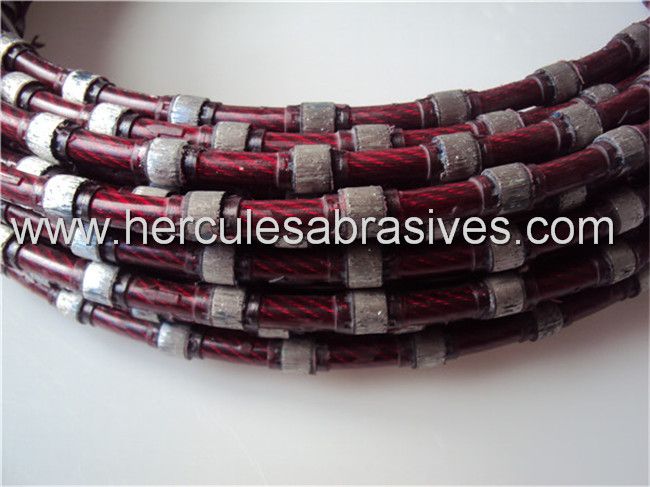

6. More Images of Diamond Wire for marble profiling.
7. Advance of our diamond wire:
Produced under the most advanced automatic production line, selected Germany steel wire rope and adopted the latest production technology and unique technique, our diamond wire has the advantages as follows:
1. Rarely breakage ratio during cutting therefore increase working lifetime.
2. Automatic production ensures stable quality and performance.
3. Safe,high efficiency and environment protection.
4. We supply different diamond wire according to different usage.
Packaging & Shipping
Packaging: PVC Shrinking Belt+Master Carton
Meters/Roll: Per customer specification
Shipment: By Fedex, UPS, TNT, DHL, By Air, or By Sea.
Estimated Time of Delivery: 1- 2 Weeks
Our Service
1. Wire sawing operation assistance service.
2. All type of diamond wire are offered.
3. Other specifications are available upon request.
|
