  No.:HAW-MQ
  Item:Diamond wire for marble/travertine quarrying


Product Description

1. Wire Application:

  • Marble/Travertine quarrying.
  • Marble/Travertine block squaring.
  • Marble/Travertine quarry dry cutting.

2. Features:

  • Efficiency cutting marble quarry and raw block.
  • Environment friendly and low cost but high output.

3. Wire Specifications:

Item No.
Bead Diameter (mm)
Bead/meter (pcs/m)
Application
Coating
HAW-MQ
Dia10.5 28 Marble quarry / Raw Block
Spring
Dia11.0 28

4.  Parameters:

Application
Wire Speed (m/s)
Cutting Speed (m2/h)
Life (m2/m)
soft marble
30-35
8-12
30-60
Medium hard marble
28-30
6-8
20-25
Hard marble
25-28
3-6
15-20
Dry cutting marble
20-25
3-5
10-15

5. Bead Specification:

Bead Diameter (mm)
Working Layer Height (mm)
Bead Type
Dia10.5 H6.0, H5.8
Sintered/Electroplated
Dia11.0 H6.0, H5.8
Sintered/Electroplated

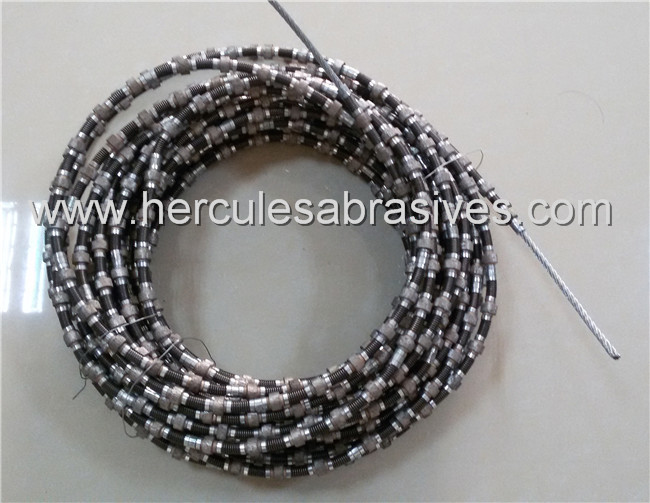

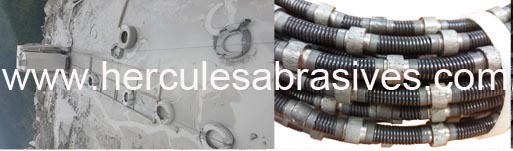

6. More Images of Spring Diamond Wire for marble quarrying.


7. Advance of our diamond wire:

Produced under the most advanced automatic production line, selected Germany steel wire rope and adopted the latest production technology and unique technique, our diamond wire has the advantages as follows:
 1. Rarely breakage ratio during cutting therefore increase working lifetime.
 2. Automatic production ensures stable quality and performance.
 3. Safe,high efficiency and environment protection.
  4. We supply different diamond wire according to different usage.

Packaging & Shipping

Packaging: PVC Shrinking Belt+Master Carton
Meters/Roll: 50/60/70Meters
Shipment: By Fedex, UPS, TNT, DHL, By Air, or By Sea.

Estimated Time of Delivery: 1- 2 Weeks

Our Service

1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan if necessary.

3. All type of diamond wire saw are offered.
4. Other specifications are available upon request.
